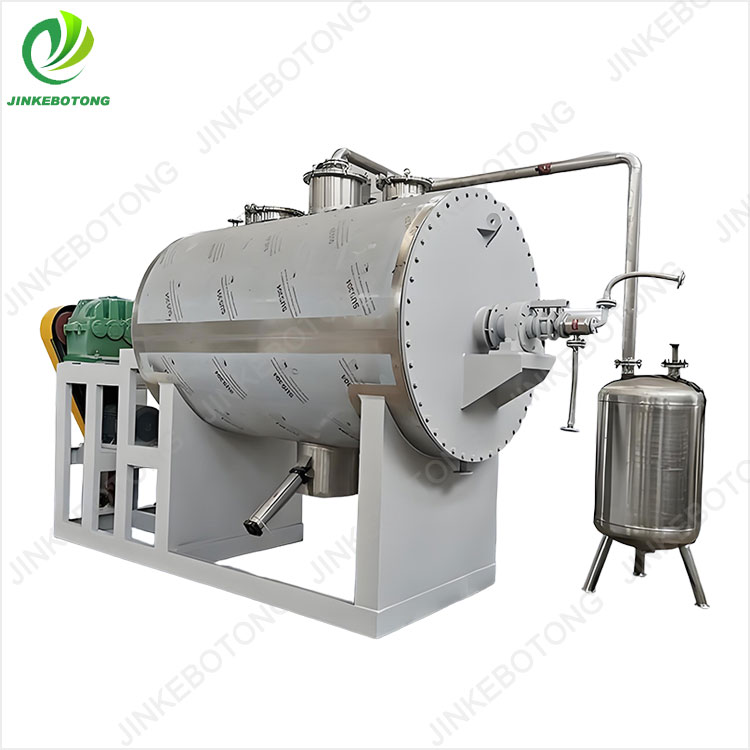

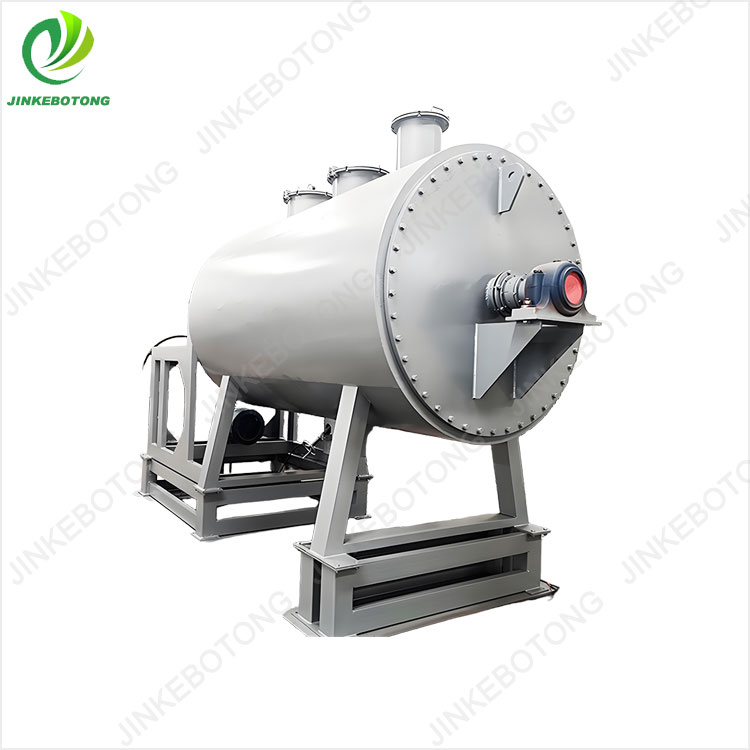

Rake type vacuum dryer

Name: vacuum rake dryer5
Uploaded: 2025-07-08T08:02:00+08:00
Description: The rake type vacuum dryer is particularly suitable for drying heat sensitive materials, materials that are prone

$30000-200000 /Set/Sets

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Transportation: Ocean
Port: shanghai

Supply Ability & Additional Information

Additional Information

Packaging: Wooden Case

Productivity: 500set/ Year

Transportation: Ocean

Place of Origin: china

Supply Ability: 500 set

Certificate: ISOO9001

HS Code: 8419399090

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Product Attributes

Brand: jinkebotong

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Motor, Pressure Vessel, Gear

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Applicable Industry: Manufacturing Plant

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Model NO.: PZG

Operational Method: Continuous

Type: Continuous Vacuum

Temperature: 30-140

Heating Source: Hot Water or Steam

Pressure: Negative Pressure

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden Case

The file is encrypted. Please fill in the following information to continue accessing it

Company Video



vacuum rake dryer5

Product Description

The rake type Vacuum Dryer is particularly suitable for drying heat sensitive materials, materials that are prone to oxidation at high temperatures, materials that are prone to hardening during drying, and materials that require the recovery of steam discharged during drying. After drying, the material is in powder form, so it is more suitable for finished products in powder form. After drying, it can be directly packaged without crushing.

Operation process

Start the heating system: Set the appropriate heating temperature according to the properties and drying requirements of the material, start the heating system, and raise the temperature inside the dryer.

Open the vacuum system: Open the valve of the vacuum system, evacuate the interior of the dryer, and gradually reduce the internal pressure. During the process of vacuuming, it is important to observe the reading on the vacuum gauge to ensure that the vacuum level meets the specified requirements.

Add materials: When the internal temperature and vacuum degree of the dryer reach the requirements, slowly open the feeding port and add the materials to be dried into the dryer. When adding materials, be careful to avoid splashing them to avoid affecting the drying effect.

Start the Mixer: Start the mixer to evenly distribute the material inside the dryer and accelerate the drying speed. The speed of the mixer should be adjusted according to the properties and drying requirements of the material to avoid clumping or damage.

Monitoring the drying process: During the drying process, it is necessary to regularly monitor the temperature, humidity, vacuum degree and other parameters of the material, as well as the operating status of the dryer, such as the heating system, vacuum system, etc. If any abnormal situation is found, measures should be taken promptly for handling.

Unloading: After the material is dried to the specified humidity requirement, turn off the heating system and vacuum system. After the internal temperature of the dryer decreases, open the unloading port and unload the dried material. When unloading, be careful to avoid moisture or contamination of the material.
