vacuum dryer mixing rake tooth drying equipment

Name: vacuum rake dryer6
Uploaded: 2025-07-08T08:02:18+08:00
Description: Vacuum rake dryer is a conductive drying equipment produced, mainly serving industries such as pharmaceuticals,

$30000-200000 /Set/Sets

Contact Now

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Transportation: Ocean
Port: shanghai

Supply Ability & Additional Information

Additional Information

Packaging: Wooden Case

Productivity: 500set/ Year

Transportation: Ocean

Place of Origin: china

Supply Ability: 500 set

Certificate: ISOO9001

HS Code: 8419399090

Port: shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Product Attributes

Brand: jinkebotong

Origin: china

Certification: ISOO9001

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Motor, Pressure Vessel, Gear

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Applicable Industry: Manufacturing Plant

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Model NO.: PZG

Operational Method: Continuous

Type: Continuous Vacuum

Temperature: 30-140

Heating Source: Hot Water or Steam

Pressure: Negative Pressure

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Wooden Case

The file is encrypted. Please fill in the following information to continue accessing it

Company Video



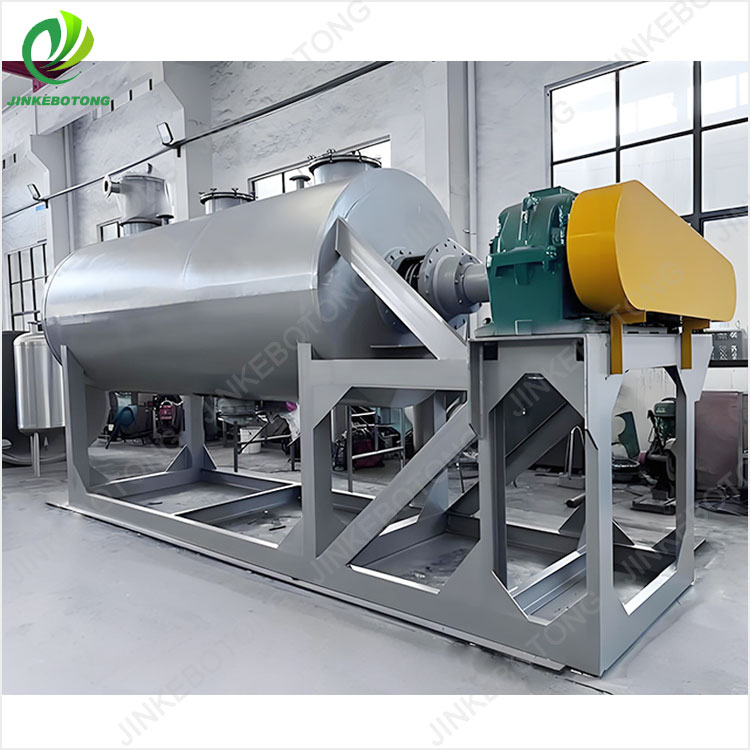

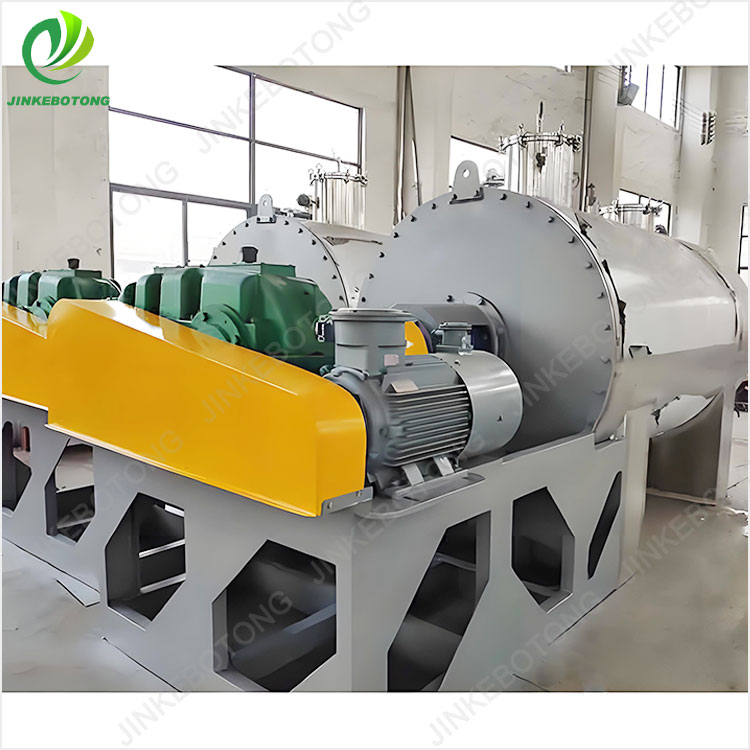

vacuum rake dryer6

Product Description

Vacuum Rake Dryer is a conductive drying equipment produced, mainly serving industries such as pharmaceuticals, chemicals, and food. This device adopts a dual heating structure of interlayer and internal stirring, which continuously stirs the material to form a circulating state, and can process powdered, paste like, and slurry like materials. Its vacuum drying characteristics are particularly suitable for hazardous materials such as heat sensitive, easily oxidized, and explosive materials, while supporting organic solvent recovery function。

Working principle

Heating and vacuum environment establishment: Wet raw drug materials are added from the middle of the shell, and a heating medium is introduced into the jacket to indirectly heat the materials. At the same time, start the vacuum pump to achieve the specified vacuum degree inside the dryer, reduce the boiling point of moisture and solvents in the material, and create favorable conditions for the drying process.

Mixing and flipping: After starting the mixing device, the rotating shaft drives the rake teeth to rotate forward and backward. The material moves to both sides with the rake teeth rotating forward, and then converges to the center with the reverse rotation. It moves back and forth in the axial direction, constantly updating the surface in contact with the inner wall of the shell. The material is uniformly heated, and the moisture and solvent in it vaporize into steam.

Steam discharge and drying completion: The vaporized steam is promptly extracted by a vacuum pump to achieve material drying and avoid deterioration of the raw materials due to high temperature, oxidation, and other factors. After the material is dried to the specified humidity requirement, turn off the heating system and vacuum system. After the temperature inside the dryer decreases, open the discharge port and discharge the dried material.
