Jinkebotong Environmental Protection Technology (Jiangsu) Co., Ltd
$30000-500000 /Set/Sets
Productivity: 500 Sets/Year
Transportation: Ocean
Place of Origin: china
Supply Ability: 500 Sets/Year
Certificate: ISO9001
HS Code: 847982
Port: shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Brand: jinkebotong
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pressure Vessel, Gear
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Applicable Industry: Manufacturing Plant
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Specification: 2000X3000X2000
Production Capacity: 200, 5-1500kg
Model NO.: EYH
Voltage: 220V
Weight(Kg): 620
Motor: 3kw
| Selling Units: | Set/Sets |
|---|
The file is encrypted. Please fill in the following information to continue accessing it

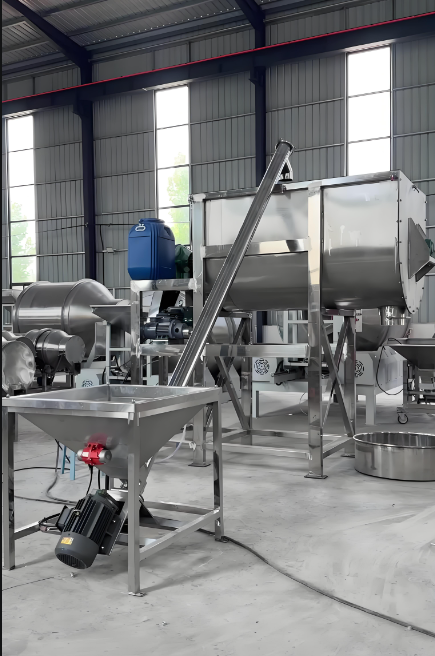

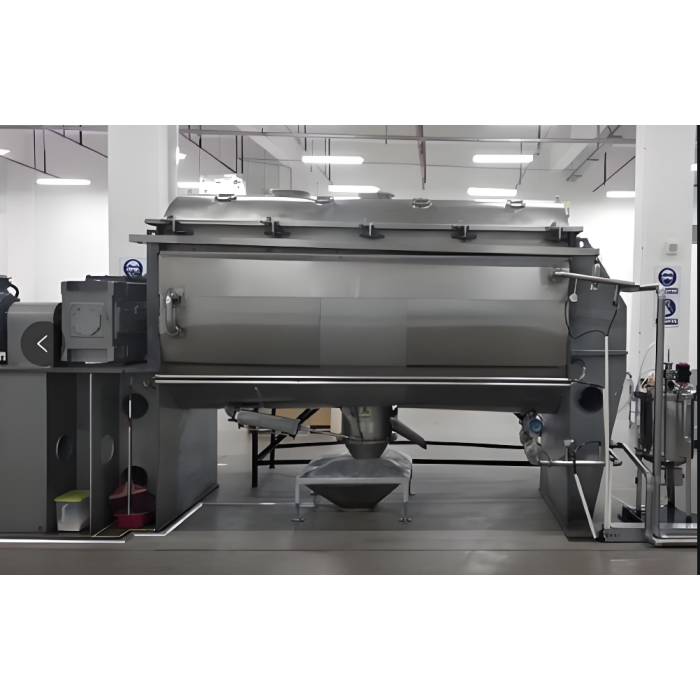

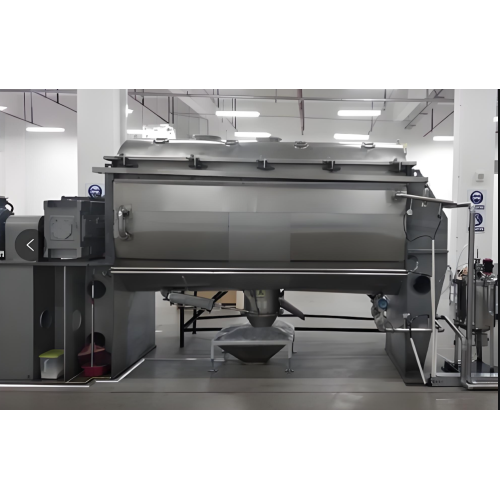

Ribbon Mixer with Horizontal tank , single shaft with dual spiral symmetry circle structure.

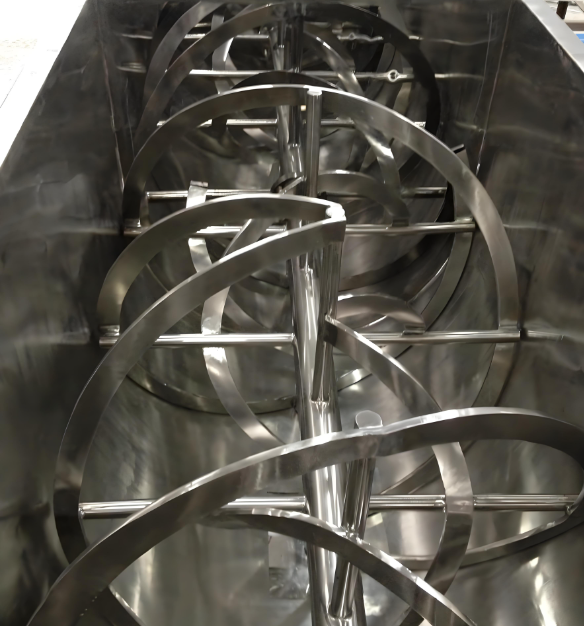

The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer's needs. Inside the tank there equipped the axes rotor which consist of, corss support and spiral ribbon.
Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regula- seal prohibit the leakage between the frequent close and open.
The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat.
