Jinkebotong Environmental Protection Technology (Jiangsu) Co., Ltd
$30000-500000 /Set/Sets
Productivity: 500 Sets/Year
Transportation: Ocean
Place of Origin: china
Supply Ability: 500 Sets/Year
Certificate: ISO9001
HS Code: 847982
Port: shanghai
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Model No.: WLDH
Brand: jinkebotong
Place Of Origin: China
Status: New
Video Factory Inspection: Provided
Mechanical Test Report: Not Available
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Plc, Motor, Pressure Vessel, Gear
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Applicable Industry: Manufacturing Plant
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Specification: 2000X3000X2000
Production Capacity: 200, 5-1500kg
Model NO.: EYH
Voltage: 220V
Weight(Kg): 620
Motor: 3kw
| Selling Units: | Set/Sets |
|---|
The file is encrypted. Please fill in the following information to continue accessing it

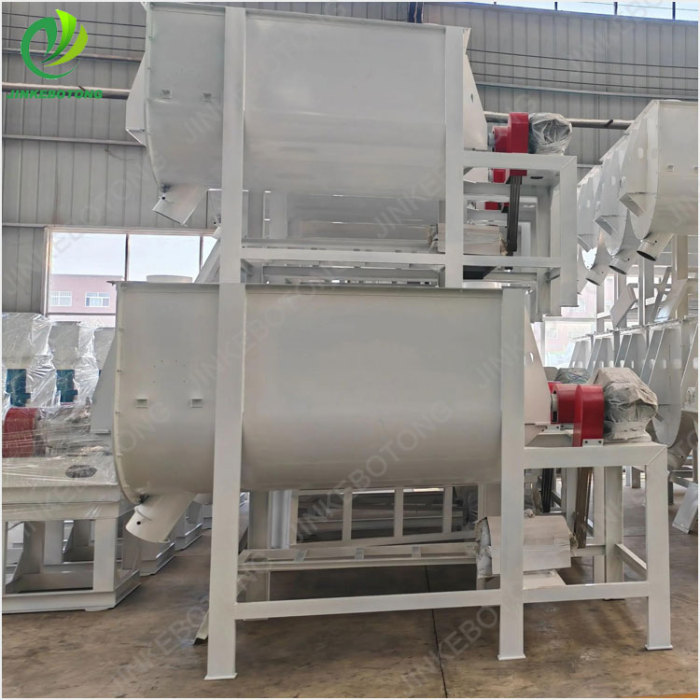

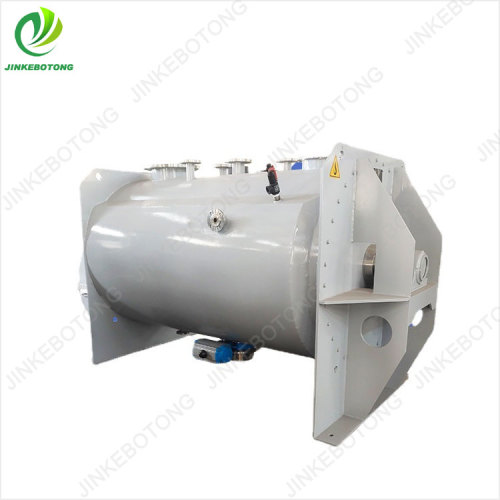

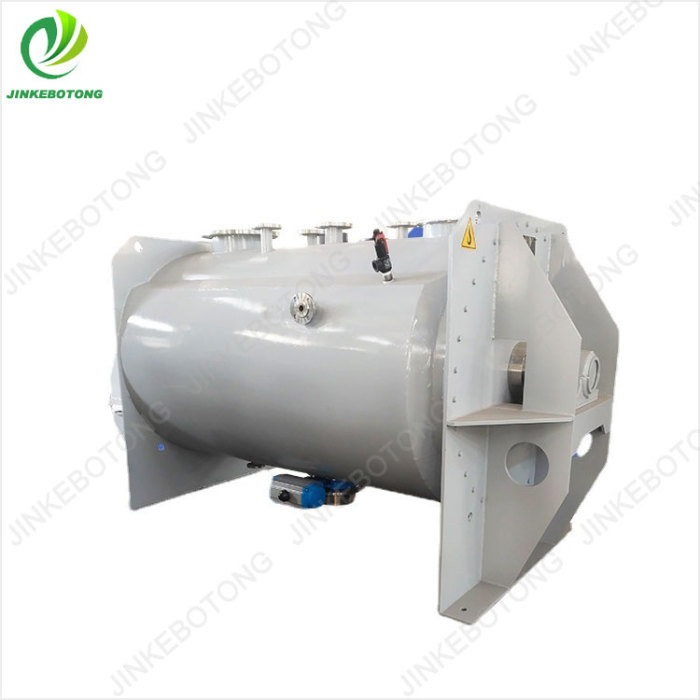

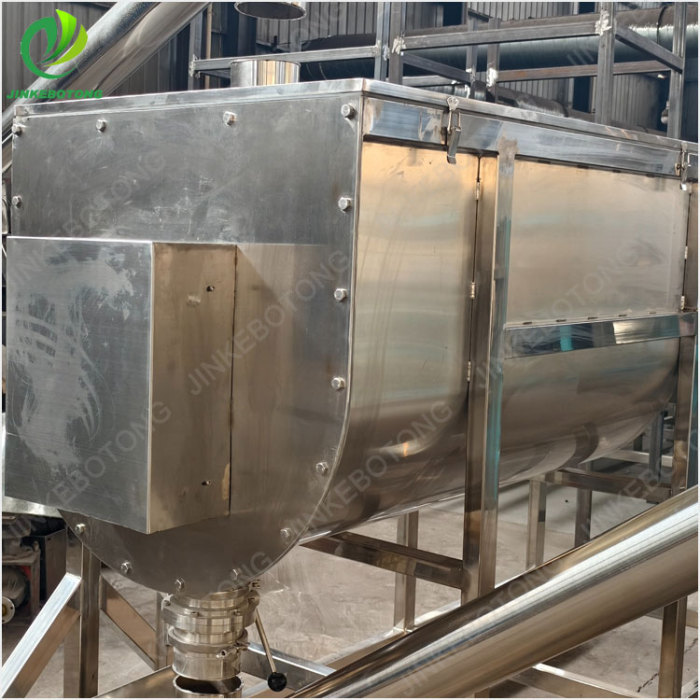

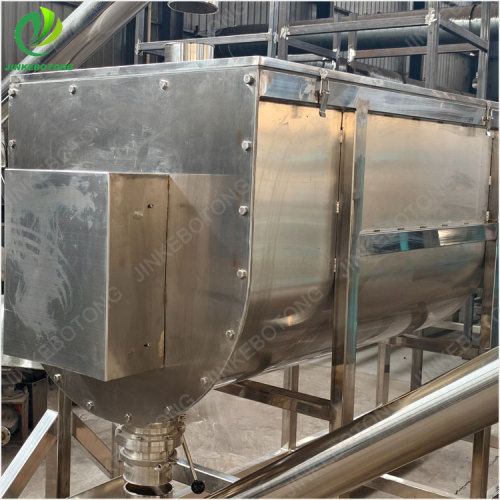

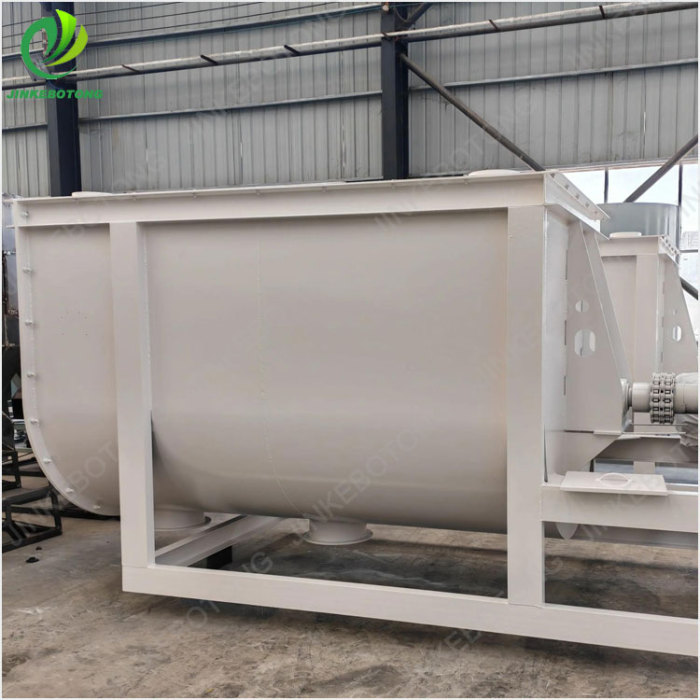

Lab scale powder Mixer is a kind of high precision and high efficiency mixing equipment. The equipment rotates with the main shaft through the blade , so that the material moves along the barrel arm in a radial circle, and the radial material flows along the throwing knife set and is scattered by the high-speed rotating throwing knife, so as to achieve the effect of mixing evenly in a short time.
Technical parameters
| Product Model | RX-LDH-0.3 | RX-LDH-0.5 | RX-LDH-1 | RX-LDH-2 | RX-LDH-3 | RX-LDH-4 | RX-LDH-5 | RX-LDH-6 | RX-LDH-8 | RX-LDH-10 | RX-LDH-15 | RX-LDH-20 | RX-LDH-30 |
| Effective Volume (m3) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 |
| Maximum Batch Output (kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 |
| Rotation Speed (r/min) | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 22 | 14 | 14 | 12 |
| Drive Power (kW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Equipment Weight (kg) | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 |
| Length | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 2100 | 5610 | 5820 | 6300 | 7000 |
| Width | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 |
| Height | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |
