Jinkebotong Environmental Protection Technology (Jiangsu) Co., Ltd
Model No.: GHL
The file is encrypted. Please fill in the following information to continue accessing it

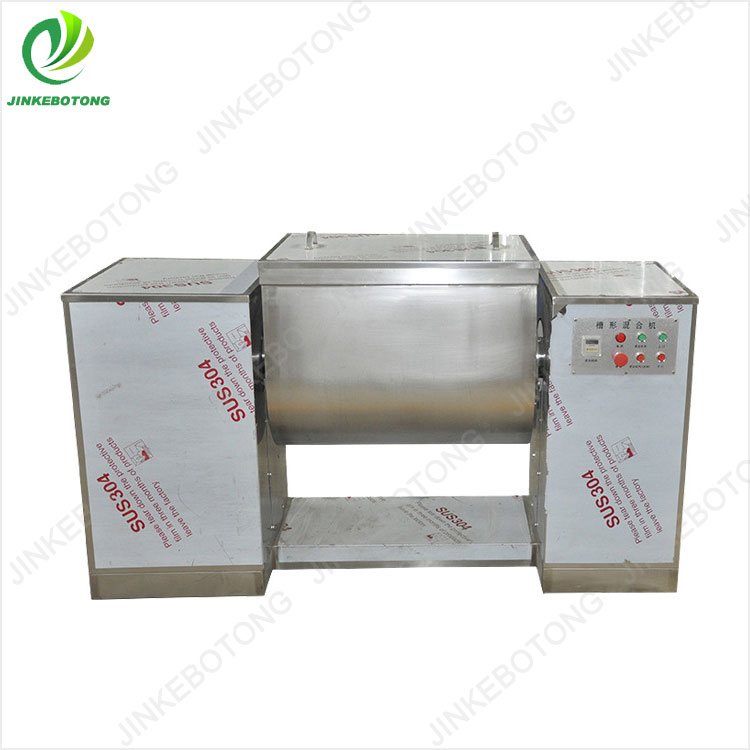

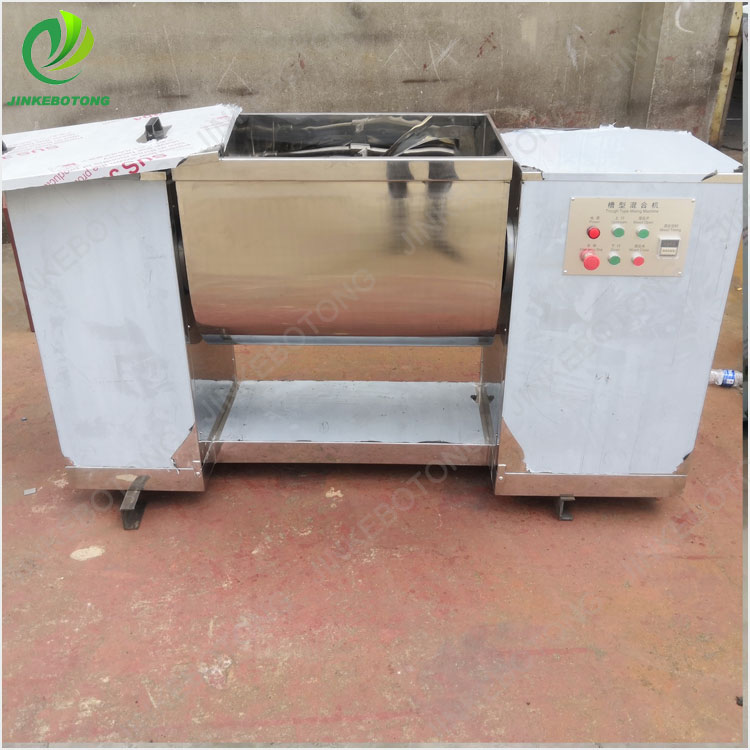

The CH series slot Mixer is widely used in the mixing of dry powder and paste materials in industries such as pharmaceuticals, food, chemicals, and electronics. It is particularly suitable for mixing materials with high uniformity requirements, large material density differences, and a certain moisture content. This machine has the characteristics of compact structure, simple operation, beautiful appearance, small footprint, easy cleaning, and good mixing effect.
Technical parameters
| Model | CH-10 | CH-20 | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 | CH-400 |
| working Volume(L) | 10 | 20 | 50 | 100 | 150 | 200 | 300 | 400 |
| Pulp shaft speed (r/min) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Main motor power (kw) | 0.55 | 0.55 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Reverse motor power (kw) | 0.75 | 0.75 | 0.75 | 0.72 | 0.75 | 0.75 | 1.1 | 1.5 |
| Dimensions(mm) | 600*280*500 | 750*380*610 | 980*425*820 | 1280*440*900 | 1590*660*1075 | 1590*660*1125 | 1890*700*1325 | 2140*705*1040 |
| Machine weighe(kg) | 40 | 71 | 220 | 250 | 550 | 600 | 920 | 920 |
