Jinkebotong Environmental Protection Technology (Jiangsu) Co., Ltd
Model No.: SBH
The file is encrypted. Please fill in the following information to continue accessing it
Technical parameters:
| Type | Material barrel volume (L) | Max loading volume (L) | Max loading weight (kg) | Spindle rotation speed (r/min) | Motor power (kw) | Overall dimensions (mm) | Weight (kg) |
| SWH-5 | 5 | 4 | 5 | 24 | 0.37 | 600*1000*1000 | 150 |
| SWH-50 | 50 | 40 | 40 | 15 | 0.75 | 970*950*1200 | 440 |
| SWH-100 | 100 | 80 | 80 | 15 | 2.2 | 1200*1800*1500 | 500 |
| SWH-200 | 200 | 150 | 150 | 12 | 3 | 1300*1600*1500 | 750 |
| SWH-400 | 400 | 300 | 200 | 10 | 4 | 1500*2200*1500 | 1200 |
| SWH-600 | 600 | 450 | 300 | 10 | 5.5 | 1850*2500*1650 | 1500 |
| SWH-800 | 800 | 600 | 400 | 10 | 7.5 | 1900*2400*2100 | 1650 |
| SWH-1000 | 1000 | 750 | 500 | 10 | 11 | 1950*2500*2400 | 1800 |
| SWH-1500 | 1500 | 1200 | 750 | 10 | 18.5 | 2600*2500*2350 | 2500 |

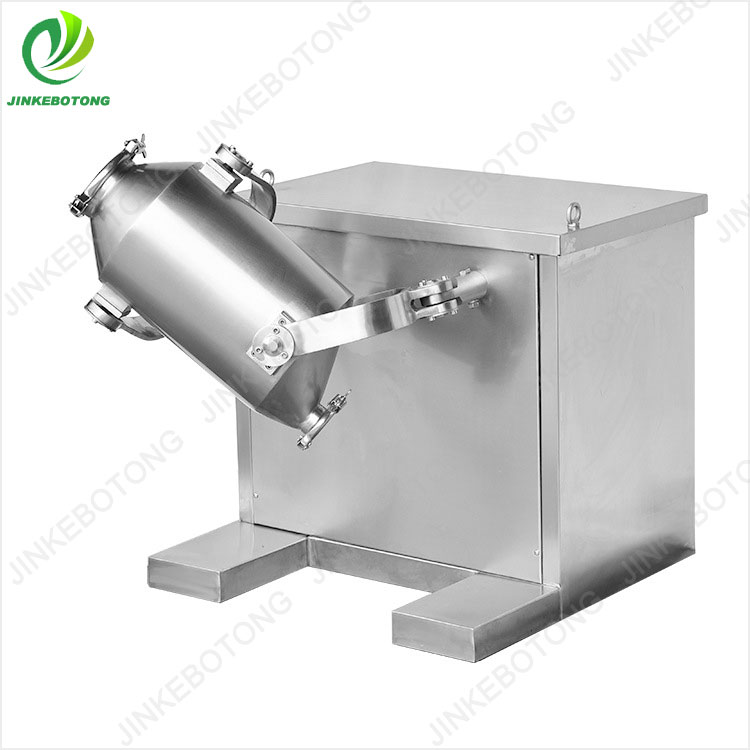

The mixing cylinder features a 360-degree multi-directional movement function, enabling numerous intersections of materials within the cylinder and resulting in a high mixing effect. During the mixing process, the flow and diffusion of various materials are accelerated. At the same time, it avoids the segregation and accumulation of material specific gravity caused by centrifugal force in general mixers. There is no dead angle in mixing, which can effectively ensure the optimal quality of the mixed material. The maximum loading coefficient can reach 0.8. With short mixing time and high efficiency, the machine is composed of components such as a base, a transmission system, an electrical control system, a multi-directional motion mechanism, and a mixing cylinder. The mixing cylinder directly in contact with the material is made of high-quality stainless steel. The inner and outer walls of the cylinder are polished, presenting a neat and beautiful appearance.
