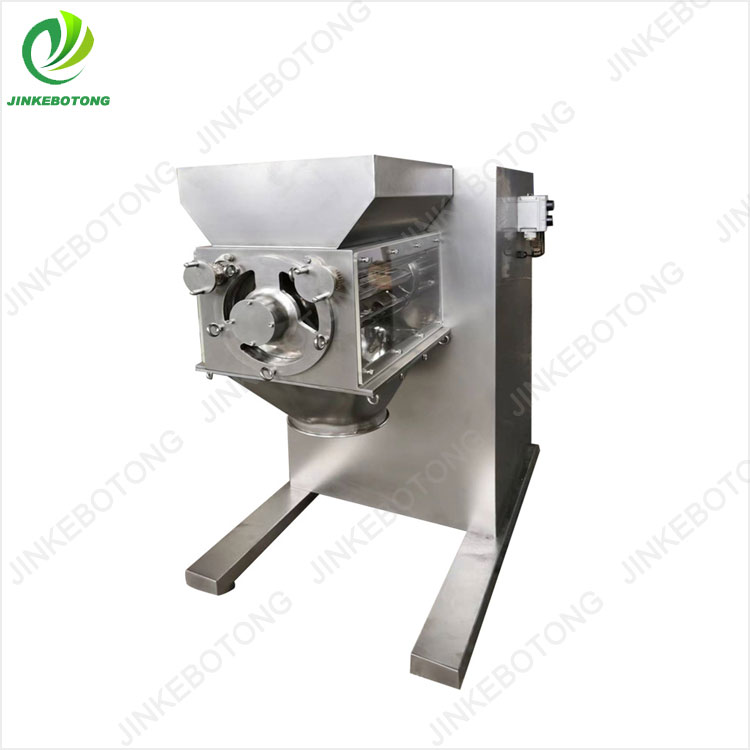

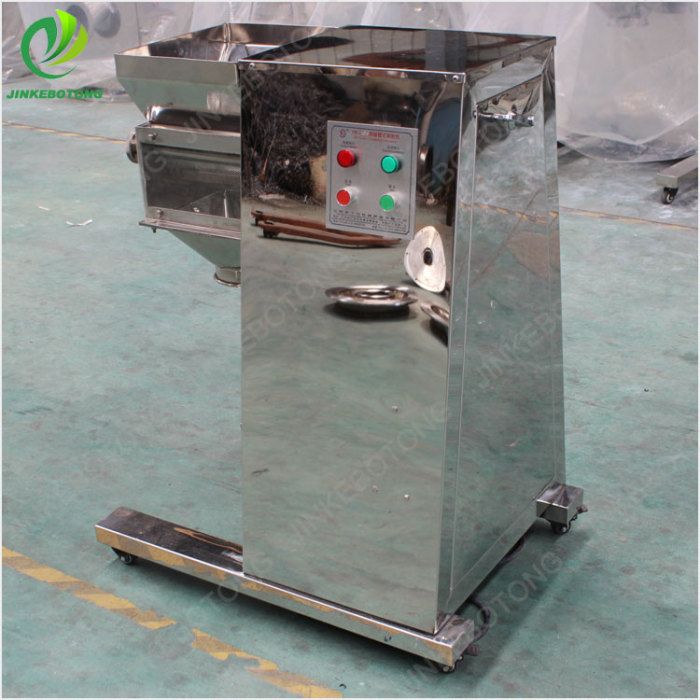

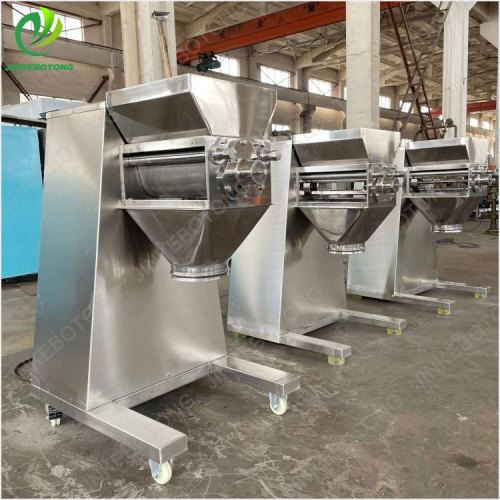

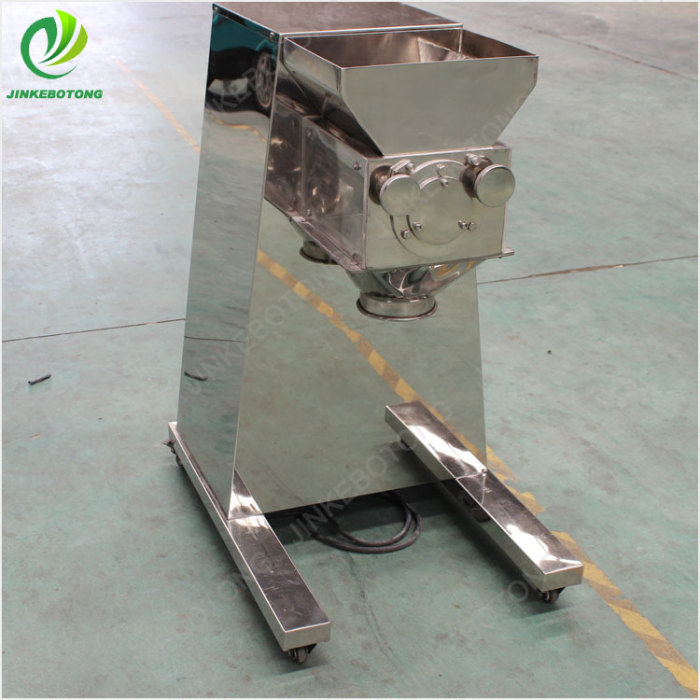

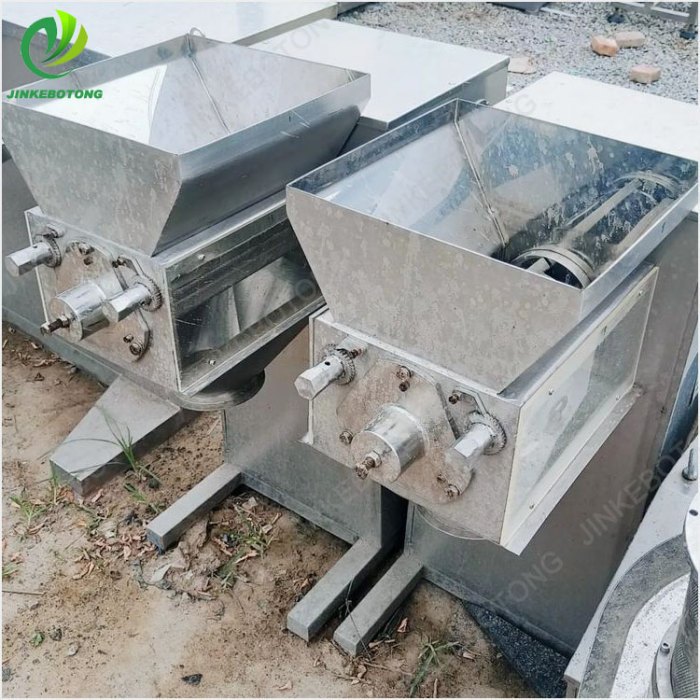

Swing granulator extrusion granulator

1:Easy to assemble and disassemble,disassemble and easy to clean.

2:All enclosed in the machine body, and is equipped with a lubrication system, the whole machine runs smoothly.

3: The speed of the rotating seven-angle drum can be adjusted

4: The whole appearance is closed with high-quality 304 stainless steel plates.

Working Principle:

The Swing Granulator mainly uses an electric motor to drive the reducer, causing the sieve or rotating drum in the granulation chamber to oscillate back and forth. The material gradually solidifies and forms particles through the sieve holes as it swings and compresses within the sieve or drum. By adjusting the aperture, swing amplitude, and rotation speed of the sieve, the size and shape of the particles can be precisely controlled.

Structural Composition

Feed inlet: used for feeding powdered or block shaped materials to be granulated.

Sieve: Responsible for material screening and granulation. Sieves with different mesh sizes can produce particles of different sizes, and are easy to assemble and disassemble with adjustable tightness.

Granulation room: It is the main place for material granulation, usually composed of a rotor and a sieve. The swinging motion of the rotor squeezes the raw materials into granules.

Electric motor and reducer: As a power source, the electric motor provides power, and the reducer converts the high-speed rotational motion of the electric motor into low-speed motion suitable for the swinging of the screen or drum, to drive the screen or drum to oscillate back and forth.

Rack: Used to support the entire equipment and ensure its stability during operation.

Cleaning device: Some swing Granulators are equipped with cleaning devices for regularly cleaning the interior of the equipment to prevent material residue blockage and cross contamination.

Characteristic

Good granulation effect: It can efficiently pelletize different materials, producing high-quality particles with good dispersibility and strong stability. For example, in traditional Chinese medicine granulation, high-quality particles can be produced from the material extraction solution to improve the dispersibility and stability of tablets.

Easy and convenient operation: Whether it is a single production process or a combination of multiple processes, it can be easily achieved, and beginners can easily get started and master the operation skills. At the same time, the equipment has precise control methods to avoid damage to the product.

Wide applicability: Suitable for granulation of various materials, including powders, crystals, etc., with fast granulation speed and high precision, it can meet the needs of different industries such as pharmaceuticals, chemicals, and food for granular products.

Stable and durable structure: The internal design is reasonable, and the accuracy and quality of the equipment are more stable, less prone to problems, and the maintenance is relatively simple and convenient, extending the service life.

Application Area

Pharmaceutical industry: used for producing pharmaceutical granules such as tablets and capsules, meeting the needs of different drug formulations by precisely controlling the size and shape of the granules, such as adjusting the diameter and shape of the granules to ensure that the hardness and disintegration time of the tablets meet standards.

Chemical industry: used for preparing granular products such as catalysts, pigments, and chemical raw materials. These granular products have the advantages of good fluidity, easy storage and transportation, and can also be used for surface modification and coating treatment of nanomaterials to improve their performance and application range.

Food industry: used for producing granular foods such as candies, granules, seasonings, chocolate beans, etc., to improve the taste and quality of products.
