Low-Temperature single-cone vacuum dryer

$10000-100000 /

Contact Now

Min. Order: 1

Product Attributes

Model No.: DZZK

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

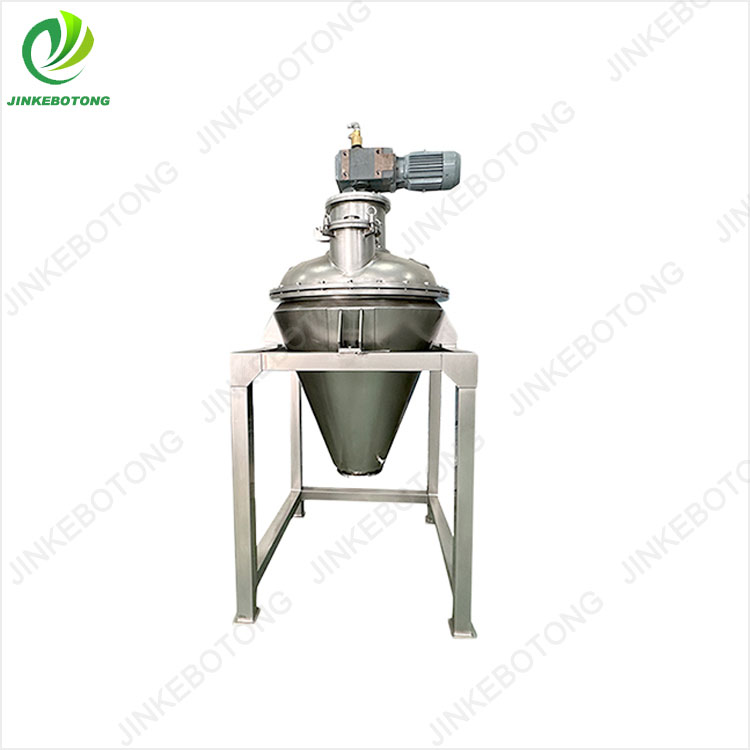

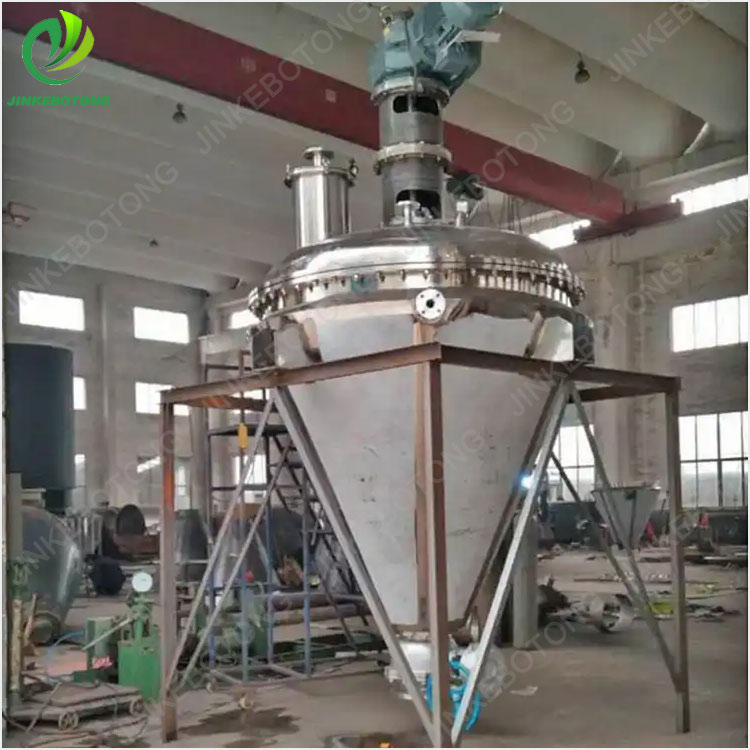

Description of Conical Screw Vacuum Dryer Machine
LDG Conical Screw Vacuum Dryer Machine is a high-efficiency vertical type drying equipment that integrates drying, crushing, vacuum decompression, and mixed powder. Its drying efficiency is three to five times the same specification double cone vacuum dryer.
This ribbon vacuum dryer machine is used for drying powdery materials in the pharmaceutical, nourishment, nourishment, food, chemical, pesticide, and other industries. The whole process can achieve closed continuous operation. This vacuum drying machine is the preferred equipment for the above industries.

Features of Conical Screw Vacuum Dryer Machine
1. The working process of the LDG drying machine uses intermittent operation, after the wet materials enter into the stock bin, through the wall jacket to heat and dry the materials. Transmission shaft heating is also available, which can heat more sufficiently.
2. With an overall sealing system, non-pollution, and high purity, this ribbon vacuum dryer is especially used for mixing and drying pharmaceutical intermediates and crude drugs as well as sterile APIs.
3. This ribbon vacuum drying machine adopts a small-angle taper type tube structure, which makes quick unloading speed, clean, and no accumulations.
4. LDG ribbon vacuum dryer machine possesses compact structure, smooth movement, simple operation, and long service life.

Working Principle of Conical Screw Vacuum Dryer Machine

LDG series Conical Screw Vacuum Dryer Machine body vertical stationary, internally heated ribbon in a circular motion to enhance the stirring, the material into the drying chamber utilizing a jacket and stirring the material contact with the heating ribbon, ribbon ordered material is agitated, flip, promotion, waterfall drop, so that the material constant contact with the heating chamber wall and forced heat exchange heating volatile solvent is pumped in a vacuum state, so as to achieve rapid drying purposes.

Application of Conical Screw Vacuum Dryer Machine

Conical Screw Vacuum Dryer Machine can be applied in many fields, especially for the process treatment under closed and controllable environment, such as pharmaceutical chemical industry and additives, unstable extract crystal under air or high temperature, and various pharmaceutical biological processes.

Specification of Conical Screw Vacuum Dryer Machine

Size / height	H1	H2	H	D1	D2	D3
500(L)	1885	1155	3040	1065	1455	1596
1000(L)	1967	1642	3629	1416	1802	1942
1500(L)	2030	1937	3967	1626	2002	2142
2000(L)	2246	2246	4495	1835	2220	2360
3000(L)	2405	2540	4945	2015	2424	2564
