Model No.: PLG
The file is encrypted. Please fill in the following information to continue accessing it

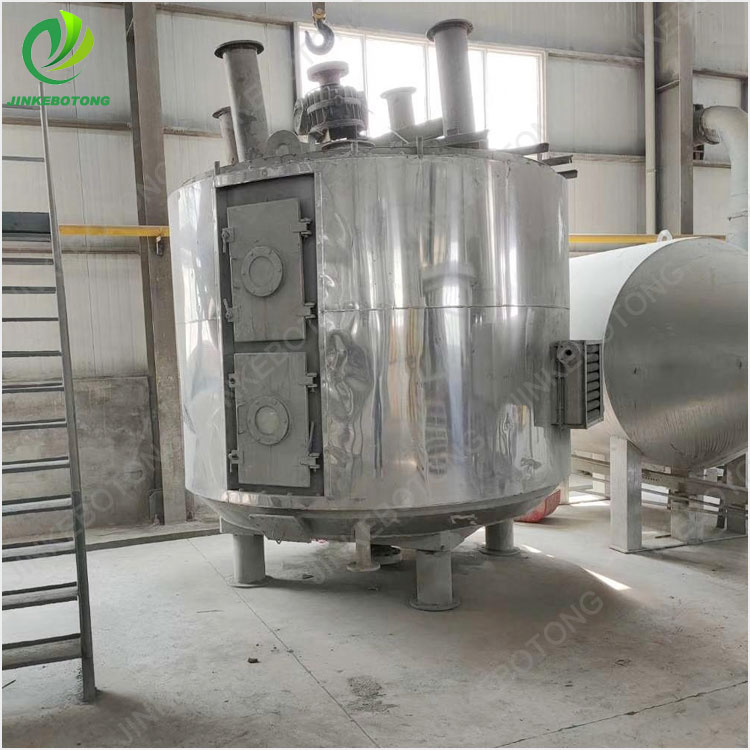

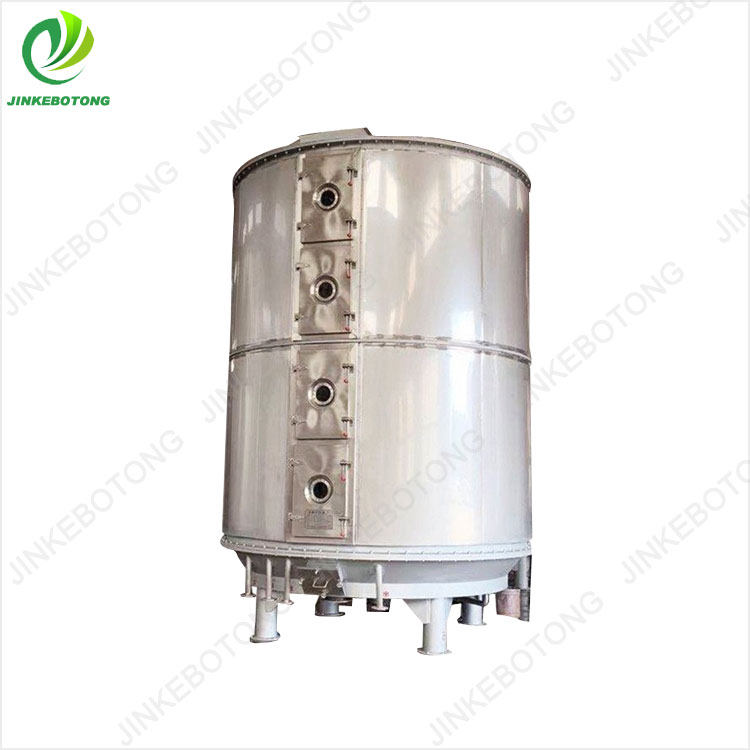

PLG Tray Continuum Dryer is a kind of high-efficiency transmission-type equipment for continuous drying. Its unique structure and WORKING PRINCIPLE determine its characteristics of high thermal efficiency, low energy consumption, small land occupation, simple configuration, convenient control and good operating environment. It is widely used in drying of industries of chemical, pharmaceutical, pesticide, food, forage, agricultural processing and so on.
Main Features
1. Easy regulation and good applicability.
The residence time of materials can be accurately adjusted. Single flow of material without back-mixing; even drying and stable quality, no need to re-mix.
2. Simple and easy operation.
Through a special endoscope large inspection door, it is possible to have a very carefully cleaning and observation within the device.
3. Low energy consumption.
Using conductive heat to dry, with high thermal efficiency and low energy consumption.
4. Good operating environment; recyclable solvents and dust emissions all meet the requirements.
Technical Parameters
| Item Model | Diameter (mm) | Height (mm) | Drying Area (m2) | Power (kw) |
| 1200/4 | Φ1850 | 2718 | 3.3 | 1 |
| 1200/6 | 3138 | 4.9 | ||
| 1200/8 | 3558 | 6.6 | 1.5 | |
| 1200/10 | 3978 | 8.2 | ||
| 1200/12 | 4398 | 9.9 | 2.2 | |
| 1500/6 | Φ2100 | 3022 | 8 | |
| 1500/8 | 3442 | 10.7 | ||
| 1500/10 | 3862 | 13.4 | ||
| 1500/12 | 4282 | 16.1 | 3 | |
| 1500/14 | 4702 | 18.8 | ||
| 1500/16 | 5122 | 21.5 | ||
| 2200/6 | Φ2900 | 3319 | 18.5 | |
| 2200/8 | 3739 | 24.6 | ||
| 2200/10 | 4159 | 30.8 | 4 | |
| 2200/12 | 4579 | 36.9 | ||
| 2200/14 | 4999 | 43.1 | 5.5 | |
| 2200/16 | 5419 | 19.3 | ||
| 2200/18 | 5839 | 55.4 | 7.5 | |
| 2200/20 | 6259 | 61.6 | ||
| 2200/22 | 6679 | 67.7 | 11 | |
| 2200/24 | 7099 | 73.9 | ||
| 2200/26 | 7519 | 80 | ||
| 2500/6 | Φ3150 | 3319 | 26.3 | 3 |
| 2500/8 | 3739 | 35 | ||
| 2500/10 | 4159 | 43.8 | 5.5 | |
| 2500/12 | 4579 | 52.5 | ||
| 2500/14 | 4999 | 61.3 | 7.5 | |
| 2500/16 | 5419 | 70 | ||
| 2500/18 | 5839 | 78.8 | 11 | |
| 2500/20 | 6259 | 87.5 | ||
| 2500/22 | 6679 | 96.3 | ||
| 2500/24 | 7099 | 105 | 13 | |
| 2500/26 | 7519 | 113.8 | ||
| 3000/ | Φ3800 | 4050 | 48 | 11 |
| 3000/10 | 4650 | 60 | ||
| 3000/12 | 5250 | 72 | ||
| 3000/14 | 5850 | 84 | ||
| 3000/16 | 6450 | 96 | ||
| 3000/18 | 7050 | 108 | 13 | |
| 3000/20 | 7650 | 120 | ||
| 3000/22 | 8250 | 132 | ||
| 3000/24 | 8850 | 144 | ||
| 3000/26 | 9450 | 156 | 15 | |
| 3000/28 | 10050 | 168 |
