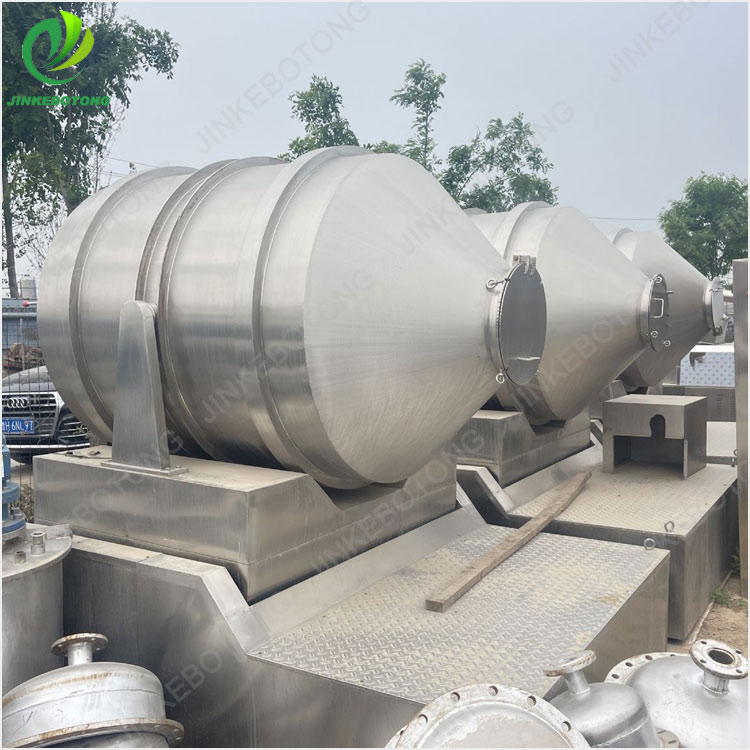

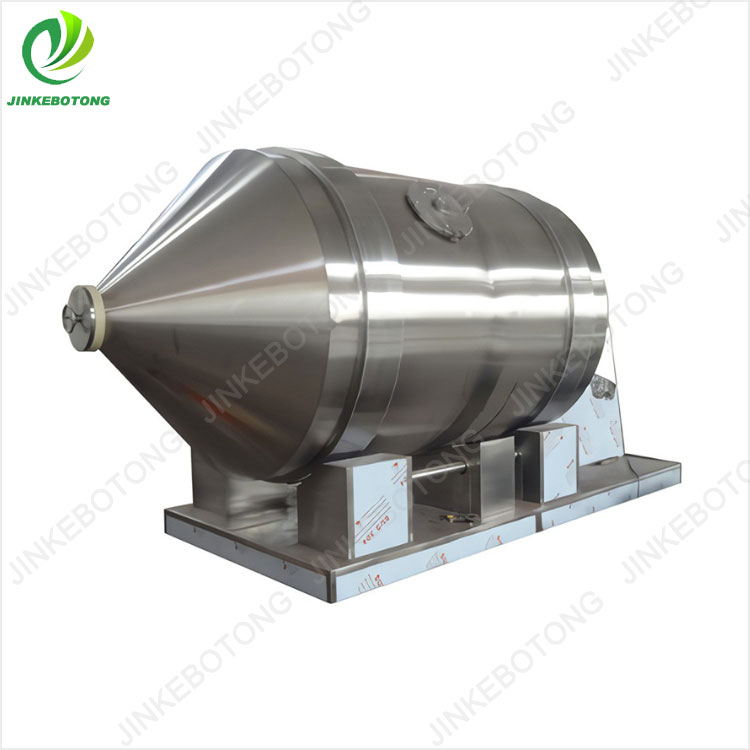

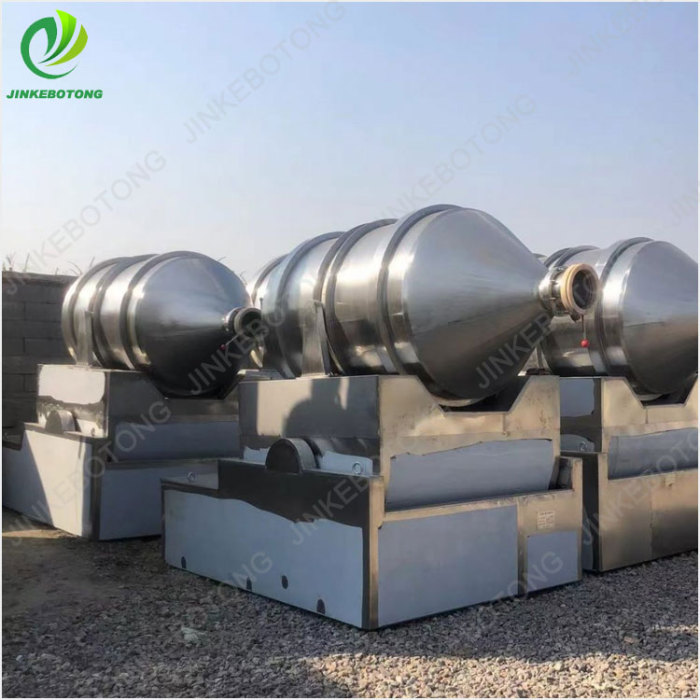

YYH one-dimensional motion mixer

This equipment is suitable for mixing dry powder and granular materials in industries such as pharmaceuticals, chemicals, food, dyes, feed, pesticides, etc. This Mixer has the advantages of simple structure, large feeding amount, small footprint, and convenient discharge

The mixer is mainly composed of a material cylinder, a transmission system (including a motor, a reducer coupling, etc.), and a machine base (including a controller). The cylinder containing mixed materials rotates at a uniform speed under the drive of the motor. Due to the welding of several specially designed "plates" on the inner wall of the cylinder, the materials move in a circular direction along the cylinder wall under the push of the cutting plate, that is, there is movement in the up, down, left, and right directions. Also, because the cutting plate has a certain angle with the central axis of the cylinder, the materials move in the front and back directions inside the cylinder, thus achieving the purpose of mixing.

1、 Simple structure and low manufacturing cost. Small space occupation, low one-time investment and production costs

2、 Easy to operate, runs smoothly, and has low noise. The rotation speed of the material cylinder can be adjusted and controlled

3、 Short mixing time and high mixing accuracy

4、The materials are mixed in a fully sealed state without contact with the outside, ensuring the cleanliness requirements of the materials

5、Both feeding and unloading can be completed in a sealed state, preventing dust from escaping and not polluting the environment. The internal structure is simple and easy to clean. Compliant with GMP standards

6、Compared to "3D", the material barrel can be made larger, increasing the mixing batch and reducing the batch, allowing users to reduce production costs.
