Model No.: GZL
The file is encrypted. Please fill in the following information to continue accessing it

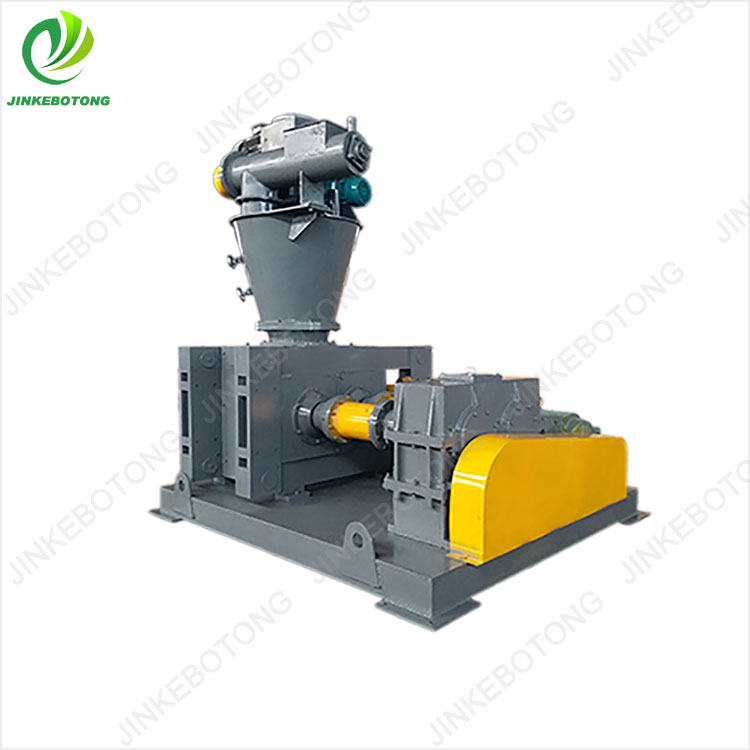

This fertilizer Granulator is a new type of granulator for organic fertilizer after many improvements on the basis of the traditional granulator for roller extrusion.It has advanced technology, reasonable design, compact structure, novel and practical, low energy consumption. It can form a small production line with the corresponding equipment. It can form a certain capacity of continuous and mechanized production. Adopting healthy formula, no need for drying, normal temperature production, product rolling forming, make product quality meet the technical requirements of compound fertilizer, is used for the production of various crops high, medium and low concentration of special compound fertilizer and compound fertilizer industry energy saving and consumption reduction replacement products.
Technical parameters
Model | DH360 | DH450 | DH650 | DH850 | DH1050 |
Roller diameter (mm) | φ360 | φ450 | φ650 | φ850 | φ1700 |
Roller speed (rpm) | 10-25 | 10-25 | 10-25 | 9-16 | 8.5-14.5 |
Max rolled sheet thickness (mm) | 8 | 12 | 16 | 25 | 36 |
Finished product output (Kg) | 900-1300 | 1800-2500 | 3500-4000 | 6000-8000 | 12000-16000 |
Granular size (mm) | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 |
Main unit power (KW) | 30-37 | 55-75 | 90-110 | 220-250 | 400 |
Total installed capacity (KW) | 55 | 90 | 175 | 400 | 850 |
External dimension (mm) | 2350×2000×2600 | 2600×2200×2900 | 3600×2800×3200 | 5000×3800×4100 | 5500×6400×4800 |
Total weight (t) | 7 | 10 | 21 | 46 | 98 |
