Jinkebotong Environmental Protection Technology (Jiangsu) Co., Ltd
Model No.: HZG
The file is encrypted. Please fill in the following information to continue accessing it

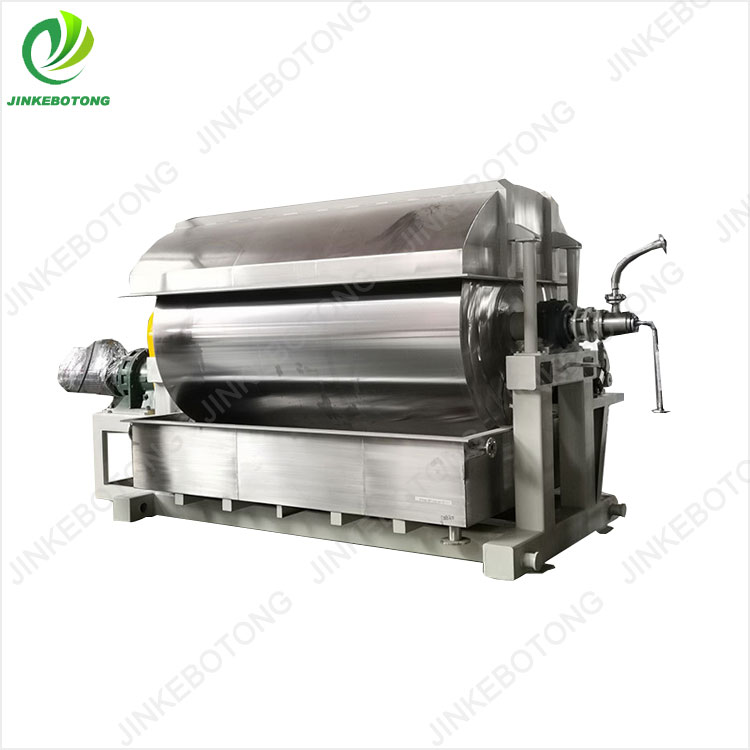

The rotary scraper roller drying machine is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the paddle, and are conveyed, collected and packed.
| specification | Roller size | Effective heating | Drying capacity | Steam consumption kg/h | Motor power kw | Overall dimensions mm | Weight kg |
| area m2 | kg.H2O/m2.h | ||||||
| HG-600 | Φ600×800 | 1.12 | 40-70 | 100-175 | 2.2 | 1700×800×1500 | 850 |
| HG-700 | Φ700×1000 | 1.65 | 60-90 | 150-225 | 3 | 2100×1000×1800 | 1210 |
| HG-800 | Φ800×1200 | 2.26 | 90-130 | 225-325 | 4 | 2500×1100×1980 | 1700 |
| HG-1000 | Φ1000×1400 | 3.3 | 130-190 | 325-475 | 5.5 | 2700×1300×2250 | 2100 |
| HG-1200 | Φ1200×1500 | 4.24 | 160-250 | 400-625 | 7.5 | 2800×1500×2450 | 2650 |
| HG-1400 | Φ1400×1600 | 5.28 | 210-310 | 525-775 | 11 | 3150×1700×2800 | 3220 |
| HG-1600 | Φ1600×1800 | 6.79 | 270-400 | 675-1000 | 11 | 3350×1900×3150 | 4350 |
| HG-1800 | Φ1800×2000 | 8.48 | 330-500 | 825-1250 | 15 | 3600×2050×3500 | 5100 |
| HG-1800A | Φ1800×2500 | 10.6 | 420-630 | 1050-1575 | 18.5 | 4100×2050×3500 | 6150 |
