The pharmaceutical intermediate

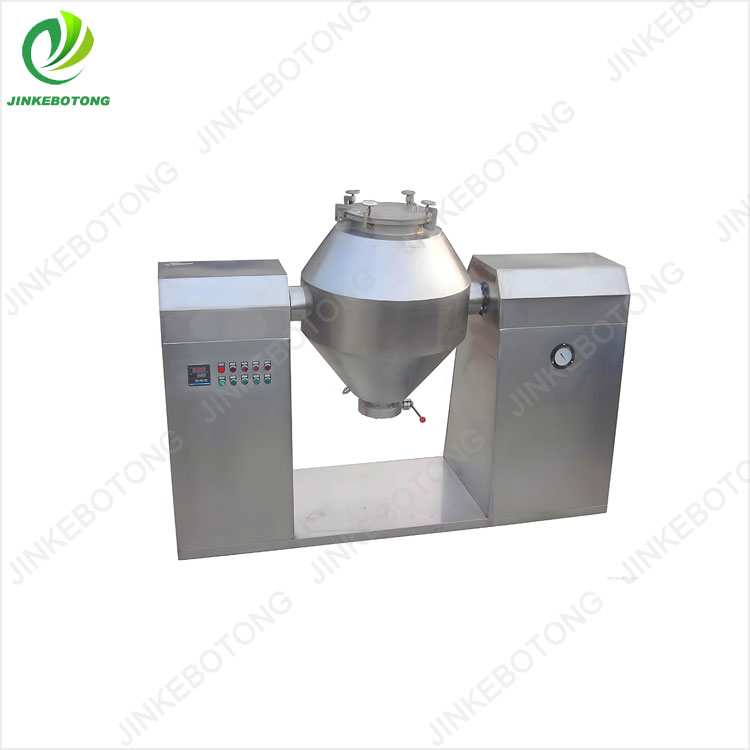

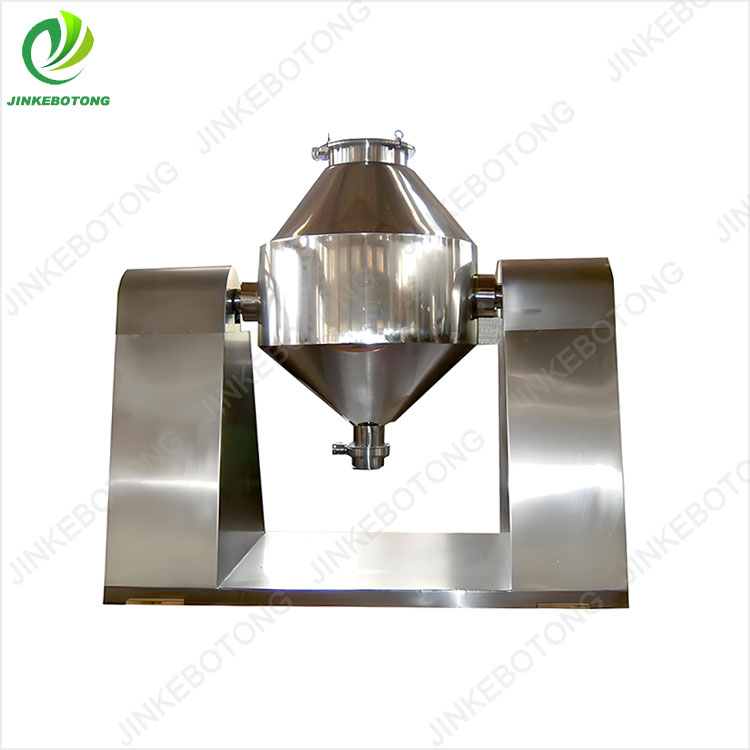

Vacuum Dryer is a key equipment used in pharmaceutical production to dry intermediate materials. Its design and functions have been optimized for the special needs of the pharmaceutical industry, such as purity, sterility, low pollution, etc. It has the following significant advantages:
1、 High drying efficiency and good energy efficiency
Low temperature drying to avoid damage to heat sensitive components: In a vacuum environment, the boiling point of water or solvents decreases (such as when the vacuum degree is 0.09MPa, the boiling point of water is about 45 ℃), and drying can be achieved at lower temperatures. This is particularly important for commonly occurring thermosensitive ingredients in pharmaceutical intermediates, such as bioactive substances and easily oxidizable components, as it can reduce the decomposition or denaturation of active ingredients and ensure product quality.
Accelerate water/solvent evaporation: Under vacuum, the water or solvent vapor on the surface of the material can be quickly extracted, forming a strong concentration gradient that promotes the migration of internal water to the surface, shortens drying time, and improves production efficiency.
2、 High product purity and low pollution risk
Isolation of air to reduce oxidation and pollution: A vacuum environment can isolate impurities such as oxygen, dust, and microorganisms in the air, avoiding material oxidation and deterioration (such as preventing discoloration of sulfur-containing and phenolic intermediates), while reducing the risk of cross contamination, in compliance with the GMP (Good Manufacturing Practice) requirements for pharmaceutical production.
Closed system, convenient solvent recovery: For intermediates containing organic solvents (such as ethanol and acetone), vacuum dryers can be combined with condensation recovery devices to efficiently recover and reuse volatile solvents, reducing material loss and environmental treatment costs, especially suitable for scenarios with flammable, explosive or toxic solvents.
3、 Uniform drying and stable material quality
Stereoscopic stirring/flipping design: Most pharmaceutical intermediate vacuum dryers are equipped with stirring blades, rake teeth, or drum flipping structures, which can fully disperse the materials during the drying process, avoid local overheating or agglomeration, ensure uniform and consistent drying of each batch of materials, and reduce product batch differences.
Adjustable parameters to adapt to various materials: By adjusting parameters such as vacuum degree, temperature, and stirring speed, it can adapt to intermediates with different physical properties (such as powder, particles, paste), ensuring that the flowability and particle size distribution of the dried material meet the subsequent production requirements.
4、 Safe operation and compliance with industry standards
Reduce the risk of flammability and explosiveness: For intermediates containing flammable solvents or easily oxidizable substances, a vacuum environment reduces the participation of oxygen in the air, reducing the possibility of combustion and explosion from the source and improving production safety.
Convenient cleaning and sterilization: The inner wall of the equipment is usually made of mirror polished stainless steel (such as 316L material), with no dead corners designed for easy cleaning (can be combined with CIP online cleaning system), and can withstand high temperature sterilization (such as 121 ℃ wet heat sterilization), meeting the strict requirements of the pharmaceutical industry for equipment hygiene level.
5、 High degree of automation, low labor intensity
Integrated intelligent control system: Modern vacuum dryers are often equipped with PLC control systems, which can automatically adjust and monitor parameters such as temperature, vacuum degree, and drying time. Some equipment supports remote operation and data tracing, reducing manual intervention and human error, in line with the trend of digitalization and intelligence in pharmaceutical production.
