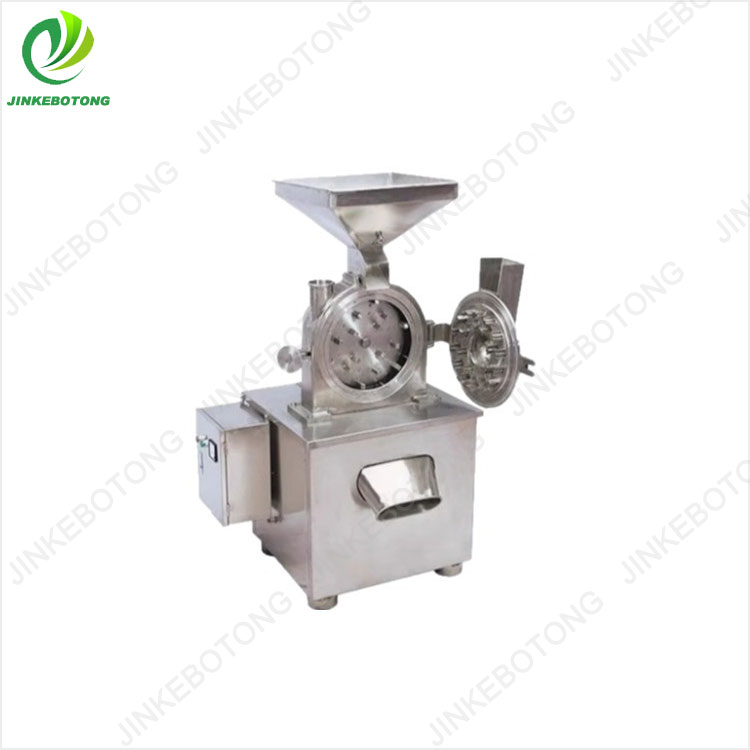

Ginseng and Panax notoginseng herbal powder mill

This machine is widely used in chemistry, dyestuff, dope, pharmaceutical,foodstuff industries. The grinding, classifying and production are processed in one obturaying system. No pollution after dedust.

It is the complete set for sanitation and safety, also for heat sensitive and sticky material.

Working principle

Gear plate impact type: Utilizing the high-speed relative motion between the movable gear plate and the fixed gear plate, the crushed material is crushed through a combination of gear impact, friction, and material impact with each other. After the material enters the crushing chamber from the feeding port, it is impacted by the high-speed rotating movable hammer body, and is crushed by the collision between the gear ring and the material. With the help of the airflow, the crushed material enters the powder bag through the sieve holes.

Hammer type: It is a tangential feed hammer type crusher, in which the high-speed rotating hammer exerts strong impact and shear on the material input. After the material enters the crushing chamber, it will immediately be hit and cut by the high-speed rotating hammer, causing it to quickly decompose into smaller particles.

Structural composition

Rack: As the supporting structure of the entire equipment, it is made of high-strength materials to ensure the stability and safety of the equipment during high-speed operation.

Crushing chamber: located inside the frame, it is the main place for material crushing operations. The interior is smooth without dead corners, making it easy for materials to flow and be crushed smoothly.

Gear disc: including movable gear disc and fixed gear disc, it is one of the core components of the crusher. The movable toothed disc is connected to the transmission device through the main shaft and driven to rotate at high speed by the electric motor. The fixed toothed disc is installed at the corresponding position of the crushing chamber, forming a certain gap with the movable toothed disc. Its tooth profile design has been carefully calculated and tested to ensure the best crushing effect and material processing efficiency.

Spindle: connects the movable gear plate and the transmission device, transmits power, and rotates the movable gear plate at high speed.

Screen frame and sieve: The screen frame is located below the crushing chamber and is used to support and secure the sieve. The sieve is made of materials with different aperture sizes according to user needs, used to screen and discharge materials that meet the particle size requirements. The aperture size directly determines the particle size range of the crushed materials.

Belt pulley and electric motor: The belt pulley is connected to the electric motor through a belt, transmitting the power of the electric motor to the main shaft and movable gear plate. The electric motor is the power source of the entire equipment, and its stability and reliability directly affect the operating efficiency and service life of the equipment.

Performance characteristics

Widely applicable: Suitable for industries such as pharmaceuticals, chemicals, metallurgy, food, and construction, it can crush various materials such as plastics, copper wire, Chinese Herbal Medicine, rubber, minerals, grains, etc. It can also be used as a Supporting Equipment for the pre processing of micro crushers and ultrafine crushers.

High crushing efficiency: By using high-speed rotating blades, gears, or hammers, a large amount of material can be crushed in a short period of time, improving production efficiency.

Accurate particle size control: By adjusting the gap between the blade and the toothed disc or replacing the mesh with different aperture sizes, the crushing particle size of the material can be precisely controlled to meet the requirements of different users for material fineness.

Easy to operate and maintain: The device has a relatively simple structure and is easy to operate. Ordinary operators can operate it without complex training, and key components are easy to disassemble and replace, which facilitates daily maintenance and reduces users' operating costs.

Safe and reliable: Multiple safety protection measures are usually adopted, such as overload protection, automatic shutdown, protective covers, etc., to ensure the safety of operators and the normal operation of equipment.

Environmental protection and energy conservation: Some models are equipped with dust removal devices, which can collect and process the dust generated during the crushing process, effectively improving the working environment. At the same time, modern designed universal crushers also consider energy consumption issues and adopt more energy-efficient technologies to reduce operating costs.

Application Area

Pharmaceutical industry: used to crush various Chinese medicinal materials, Western medicine raw materials, etc., and process them into fineness that meets the requirements of drug production for subsequent formulation production.

Chemical industry: Chemical raw materials can be crushed to achieve appropriate particle size, which is beneficial for chemical reactions or facilitates subsequent mixing, processing and other processes.

Food industry: suitable for the pretreatment and crushing of food raw materials, such as grains, beans, nuts, etc., to meet different needs in food production, such as making flour, seasonings, fillings, etc.

Construction industry: Especially the two-stage universal crusher, which can be used to process construction waste such as cement bricks, tiles, etc., crushing large pieces of waste concrete, bricks, and other materials into smaller particles for subsequent screening, classification, and reuse, promoting the recycling of construction waste.

Other fields: can be used for crushing feed raw materials in the aquaculture industry; In the metallurgical industry, ore and other materials can be crushed and processed to improve mineral processing efficiency; In the field of solid waste treatment, difficult to degrade substances such as plastics and rubber can be crushed for subsequent recycling or pyrolysis treatment.
