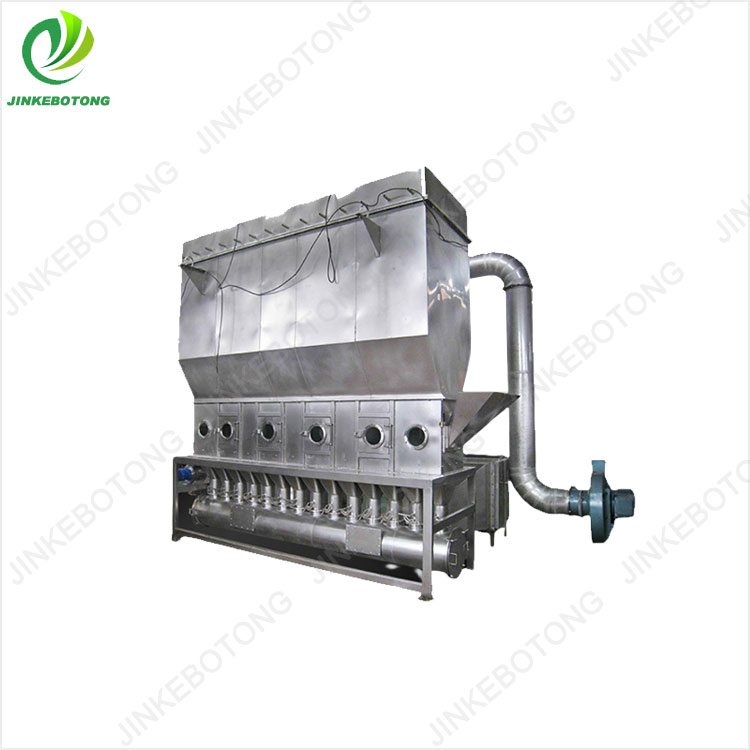

XF Horizontal Fluid Bed Dryer Description
Fluidizing Drier is also called fluidization bed. Through operation and improvement for about twenty years, it has played an active part in fields of pharmaceutical, chemical, foodstuff, grain and so on. It consists of an air filter, fluidizing bed, cyclone separator, dust remover of bag, high-speed centrifuge and fan, operation table, and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust remover at the same time or one of them. In general speaking, cyclone separator can be selected if the raw material is large and the dust remover of the bag may be selected if the raw material is light. Moreover, there is air feeding device for your selection.
XF Horizontal Fluid Bed Dryer Applications
It has been widely applied in the fields of pharmaceutical, chemicals, powder, and granular materials such as bulk pharmaceuticals, granular patent medicines, preparations, feed, plastic resin, etc. The granular diameter shall be within the range from 0.1 to 6mm and the best is 0.5 to 3mm.
Working Principle of Horizontal Fluid Bed Dryer
The clean and hot air enters into the fluidization bed through the distributor of the valve plate. The wet material fed from the feeder will be formed a fluidization state by hot air (jumping within the bed like boiling water), so it is called fluidizing dryer(or machine). Because of the large contacting area between hot air and materials, the drying time is short. The air enters from one end of the bed, through" boiling" for several minutes, and then comes out automatically from the other end.
XF Horizontal Fluid Bed Dryer Technical Parameters
| Model and specifications | XF0.25-1 | XF0.25-2 | XF0.25-3 | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Technical Parameters | (Original XF10) | (Original XF20) | (Original XF30) | ||||||||
| Area of bed layer(m2) | 0.25 | 0.5 | 1 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 1.6 | 2.4 |
| Drying capacity(kg h2O/h) | 1015 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84 |
| Power of fan(kw) | 5.5 | 7.5 | 15 | 22 | 7.5 | 18.5 | 30 | 37 | 48 | 30 | 37 |
| Temperature of air in(oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Temperature of air in(oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Overall dimensions(main machine) L×W×H(m) | 1×0.6 | 2×0.6 | 4×0.6 | 6×0.6 | 2×0.70 | 4×0.7 | 6×0.7 | 8×0.7 | 10×0.7 | 4×1 | 6×1 |
| ×3.35 | ×3.35 | ×3.35 | ×3.35 | ×3.4 | ×3.4 | ×3.4 | ×3.4 | ×3.4 | ×3.58 | ×3.58 | |
| Occupied area(m2) | 18 | 25 | 35 | 40 | 25 | 38 | 45 | 56 | 70 | 18 | 56 |
| Model and specifications | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4 | XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Technical Parameters | (Original XF50) | ||||||||||
| Area of bed layer(m2) | 3.2 | 4 | 4.8 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Drying capacity(kg h2O/h) | 112-160 | 140-200 | 168-240 | 70-100 | 140-200 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Power of fan(kw) | 44 | 66 | 66 | 30 | 66 | 66 | 90 | 90 | 150 | 150 | 165 |
| Temperature of air in(oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Temperature of air in(oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Overall dimensions(main machine) L×W×H(m) | 8×1 | 10×1 | 12×1.2 | 4×1.2 | 8×1.2 | 8×1.2 | 10×1.2 | 12×1.2 | 14×1.2 | 16×1.2 | 18×1.2 |
| ×3.58 | ×3.58 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | ×4.1 | |
| Occupied area(m2) | 74 | 82 | 96 | 50 | 70 | 82 | 100 | 140 | 180 | 225 | 268 |
| Note:1.The feeding way has:1>.star feeding 2>.combining star feeding air conveyor 3>.belt conveying 4>.decided by customer | |||||||||||
| 2.Automatic production can be realized.3.Besides the model above mentioned,the special model can also be designed and manufactured as request.4.According different raw material,the power of fan will be differ. | |||||||||||
